A flip-up attendant seat with a Type Approved integrated child restraint built in.
Carries an uninjured child in a five-point harness, then folds away to work as an ordinary attendant seat.
Features
- Integrated Type Approved child restraint for uninjured children of 9-29.4 kg and 60cm – 125cm height
- Seamless vac-form construction for easy and efficient cleaning
- Five-point child safety harness with push-button release
- Can be used on a variety of cabinet and seat bases (fixed and 2 position swivel)
- Forward or rearward facing
- Typically positioned rearward facing at the head of the stretcher
- Child insert folds into the seat when not required, leaving a standard attendant seat
- Seat bottom flips up and locks upright to save space
- Streamlined ABS back for increased durability
- Sewn version available
More views
-
Child restraint deployed, showing the five-point harness -
Flipped up and locked upright, child insert stowed -

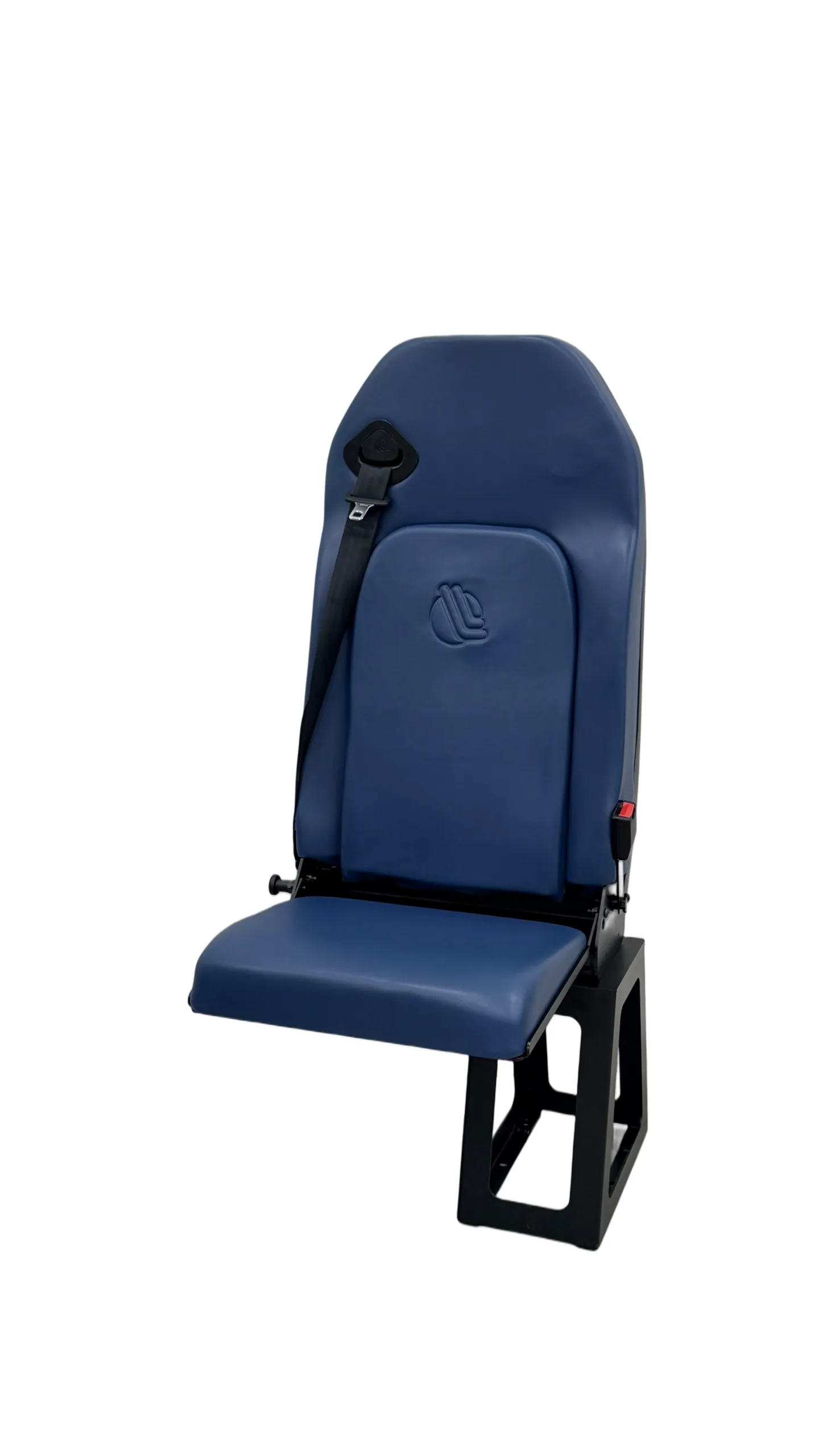

In attendant use, with the three-point belt over the left shoulder
Specification
The 1860U is the UK and European build, tested to M1 standards (18603U in the manufacturer numbering).
Supplied with an R44 type-approved integrated child restraint, and with the belt configuration approved for the UK and European market. Compatible with a range of bases — tell us your vehicle layout and we will confirm the right combination.
Seamless upholstery
This seat is available with seamless upholstery in medical-grade vinyl. With no seams for fluids or contaminants to collect in, it wipes down completely between jobs, and the surface is formulated to withstand repeated disinfection.
Sewn version available. If a stitched covering is preferred, this seat can be supplied that way. It is the same seat on the same frame – only the covering differs, so the test evidence is unaffected. We would normally recommend the seamless build. More on sewn versions.
Enquire about the 1860U
We supply ambulance builders across the UK and Europe, and work directly with fleet operators on specification. Get in touch for pricing, drawings or approval documentation.
