The seat is only half of the installation. The base determines how the seat mounts, how it swivels or locks, and how much space it takes in the saloon – and it is part of what your approval authority signs off. Tell us the vehicle and the layout and we will recommend the combination.
This list is being confirmed
The bases below are the manufacturer’s full range. We are confirming which of them we hold UK and European test evidence for, so treat anything marked to confirm as exactly that. Ask us before specifying one.
Bases for flip-up seats
For the flip-up attendant and child seats, where the seat bottom folds up to free floor space.
-
SB186-8
Standard-height eight-position swivel base, locking at 45° increments. Mounted centre (SB186-8C), offset left (SB186-8L) or offset right (SB186-8R).
For: 1760, 1769, 2160, 2169
-

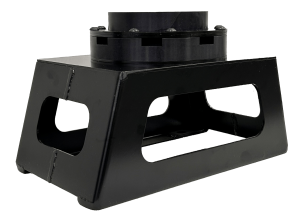

SB186-8S
Shortened eight-position swivel base, locking at 45° increments. Centre (SB186-8SC), offset left (SB186-8SL) or offset right (SB186-8SR).
For: 1760, 1769, 2160, 2169
-
SB186-8WWM
Low-profile eight-position swivel base at 89 mm (3.5″) high, locking at 45° increments. Designed to mount in wheel-well areas. Centre, offset left or offset right (SB186-8WWMC / L / R).
For: 1760, 1769, 2160, 2169
-
CBPED1760/1860
Standard-height pedestal base for flip-up seats. Can be mounted centre, offset left or offset right.
For: 1760, 1860, 2160, 2169
Bases for non-flip seats
For the fixed attendant and child seats.
-
SWVL2
Standard-height two-position swivel base. Locks in the forward and rearward positions and swivels through 360°.
For: Child seats
-
SWVL8
Standard-height eight-position swivel base. Locks at 45° increments and swivels through 360°.
For: Non-child seating
-

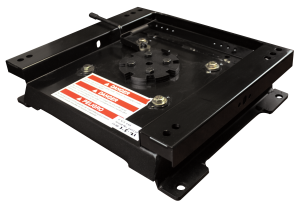

SWVL8S
Low-profile eight-position swivel base, 89 mm (3.5″) high. Locks at 45° increments and swivels through 360°. Made for wheel-well areas where headroom under the seat is tight.
For: 1780, 1790, 1900, 2000
-
CB
Standard-height reinforced cabinet base. Can be mounted forward-, side- or rear-facing, and converts into a lock box for securing drugs.
For: All non-flip seats
-
CBH
Tall cabinet base, designed to house a heater unit.
For: EVS Standard seating
-
CBWD
Reinforced cabinet base with a door and latch. Also available with a lock and key as the CBWDK.
For: Standard and Advanced seats
-
CBPED
Standard-height pedestal base with a smaller footprint, for tight spaces. For seats without a slide track.
For: 1780, 1780E, 1880
-
CBPEDR
As the CBPED, for seats with a slide track.
For: 17803ET, 18803
-
CBT
Long cabinet base for van-conversion bodies. Fits behind the bulkhead and lets an oxygen cylinder be secured beneath it.
For: Rearward-facing flip-up seats at the head
-

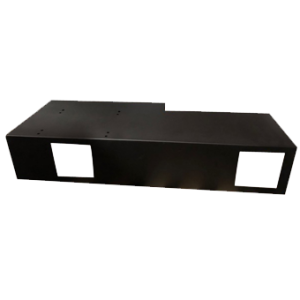

CBTS
Shorter version of the CBT, and compatible with all body types. Also fits behind the bulkhead over a secured oxygen cylinder.
For: Rearward-facing flip-up seats at the head
The base is part of your approval submission
A seat is never approved in isolation. Once it is mounted, what matters is the strength of the whole system – floor, base, seat and belt together – and that is tested in your vehicle, on your floor, and signed off by the approval authority in the country of registration.
Ask us early. We will tell you which base suits the layout and supply what you need for the submission.
Talk to us about the combination
Seat, base and belt are specified together. Tell us the vehicle, the layout and how the crew works and we will recommend the right combination rather than leaving you to work it out from a parts list.
